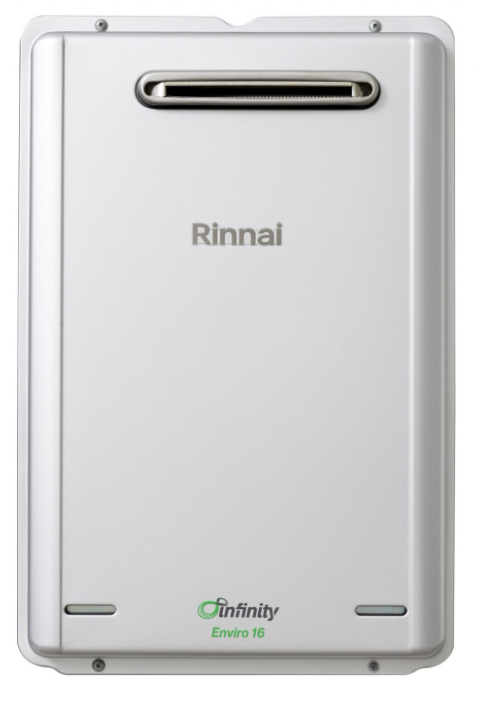

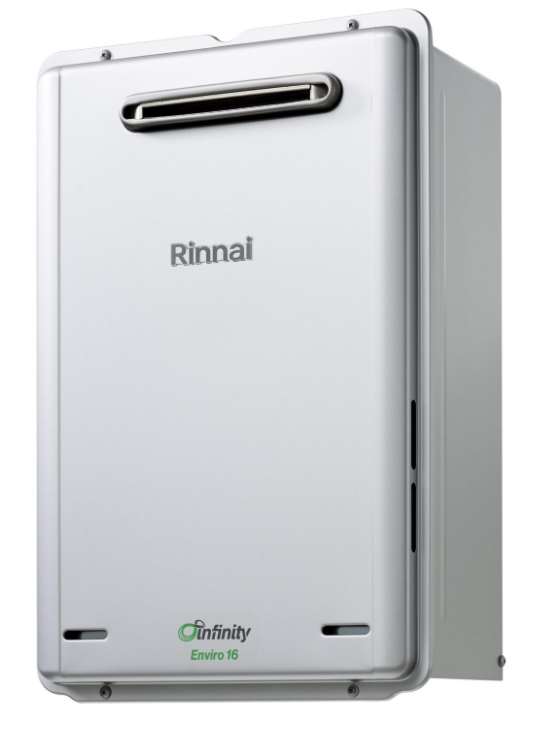

Rinnai Infinity 16 ENVIRO

Never ending hot water for larger homes.

Designed to provide luxurious instant hot water for larger homes with 2-3 bathrooms (2-4 in warmer climates), the Rinnai Infinity 32 Continuous Flow is unparalleled in performance and eco-efficiency.

Using considerably less gas than a standard storage gas hot water system, the unit only heats water when you turn a tap on, conserving energy and reducing household running costs.

Designed for simple domestic commissioning and installation, the slimline unit withstands tough Australian conditions and saves precious outdoor space. The Rinnai Infinity 32 also comes equipped with a host of features including built-in temperature control display, enhanced safety monitor and puretemp™ stability control.

Customise and complete your Infinity 32 Continuous Flow system with our comprehensive range of hot water controllers to enhance your hot water experience

Specifications

Dimensions (mm) : Height	600
Dimensions (mm) : Width	470
Dimensions (mm) : Depth	271
Colours	White
Factory Default Temperature (Celsius)	50 or 60
Water Pressure (kPa) : Minimum	200
Water Pressure (kPa) : Maximum	1000
Gas Rate Min/Max (Mj/h) : NG	20/250
Flow Rate 25 Degrees C/Max : l/min	32/37
Star Rating	6.0
Connection Sizes Gas/Hot/Cold (mm)	20/20/20
Status Monitor	Yes
Dimensions (mm) : Height Inc Brackets	640
Dimensions (mm) : Hot Water Outlet (From Wall)	115
Dimensions (mm) : Hot Water Outlet (Left from Centre)	61
Dimensions (mm) : Cold Water Inlet (From Wall)	125
Dimensions (mm) : Cold Water Inlet (Right from Centre)	67
Dimensions (mm) : Gas Connection (From Wall)	61
Dimensions (mm) : Gas Connection (Right from Centre)	120
Dimensions (mm) : Gas Connection Length (From Base)	37
Dimensions (mm) : Cold Connection Length (From Base)	49
Weight (kg)	23

Infinity 32 - Continuous Flow Hot Water System - Rinnai Australia

* Independently calculated using Australian Standard AS5263.1.2.  S5263.1.2 limits the rating shown on the energy label to 6.0 Stars.  Where the calculated rating of Rinnai appliances exceeds 6.0 Stars it is designated as an “equivalent” rating.
