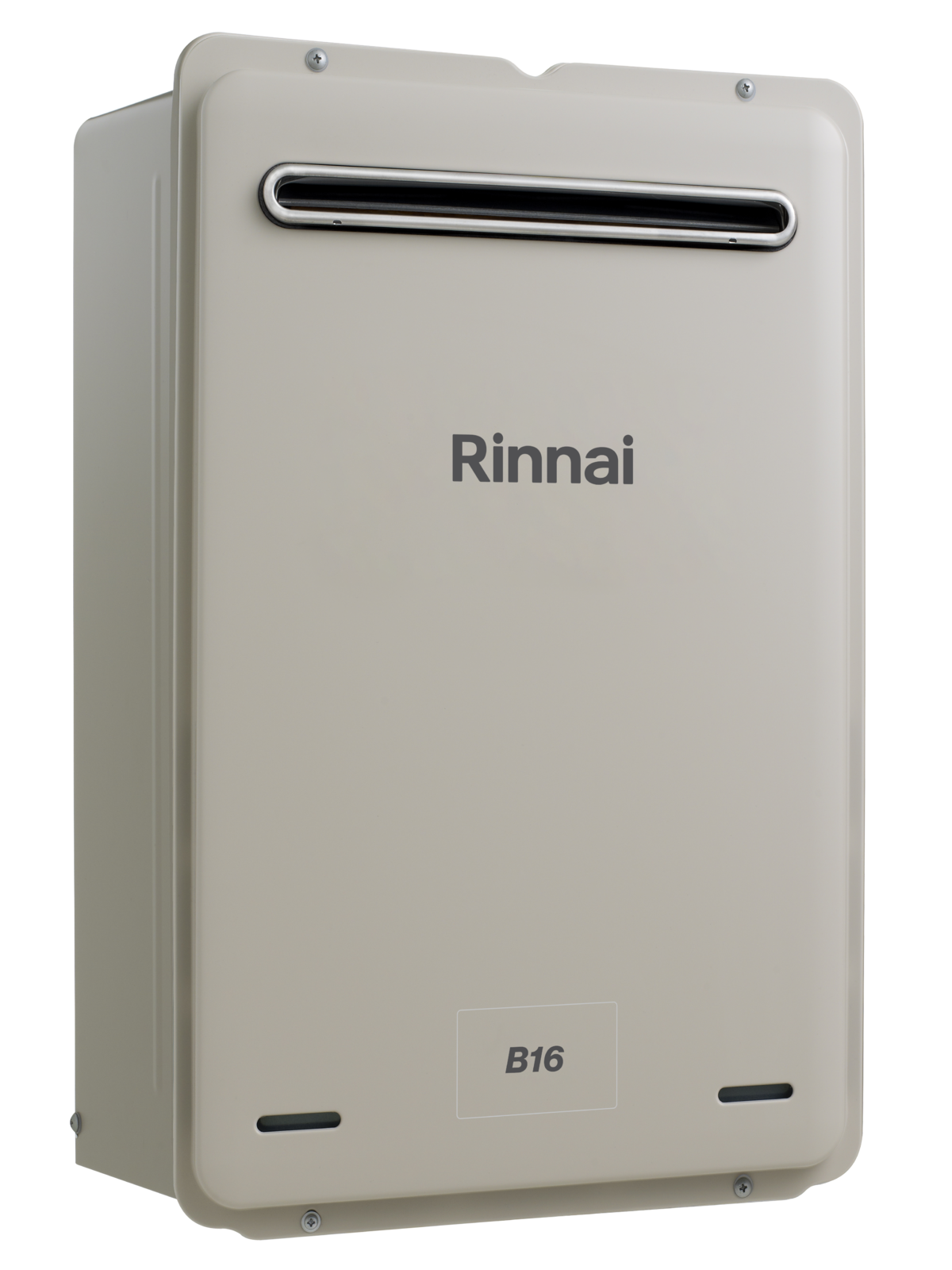

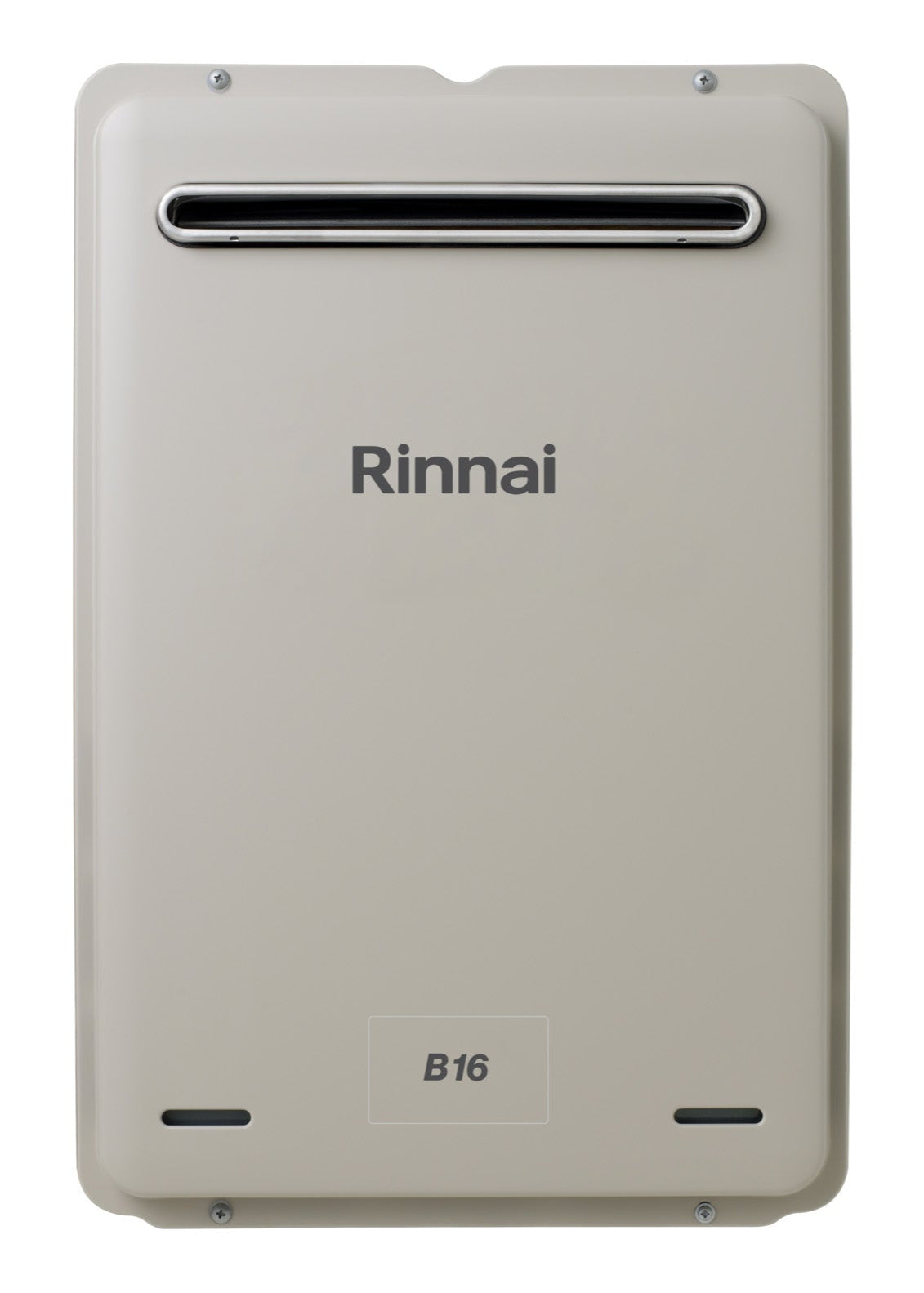

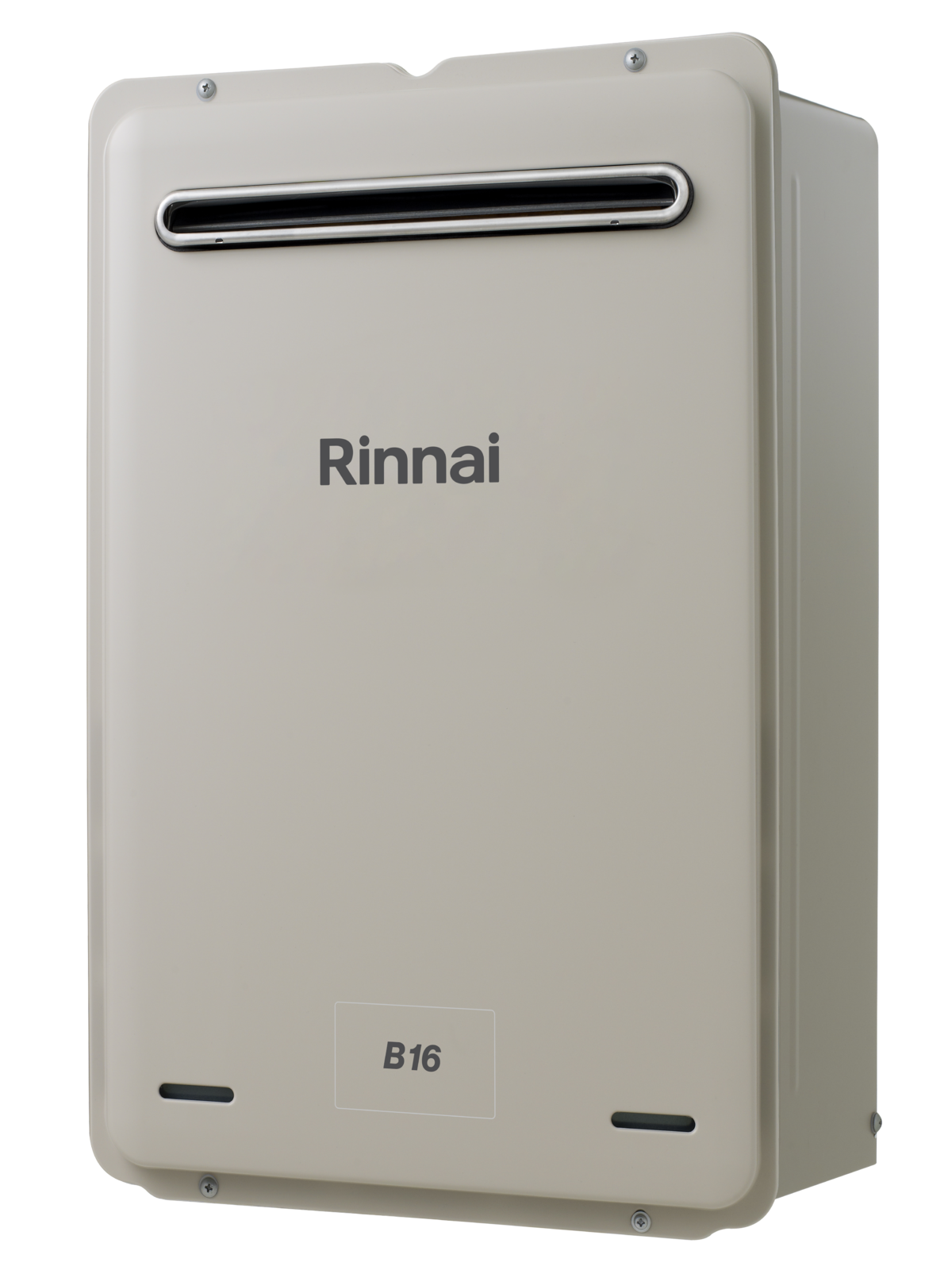

Rinnai Flow Hot Water B16 Continuous
Rinnai Flow Hot Water B16 Continuous
Couldn't load pickup availability
Endless hot water for one-bathroom homes.
Perfect for single bathroom homes, the Rinnai B16 Continuous Flow Hot Water System ensures you never run out of hot water again.
Unparalleled in performance, the unit only heats the water when you turn a tap on, conserving energy and reducing household running costs. Coupled with an impressive 6 star energy rating, the Rinnai B16 is the most energy efficient 16L continuous flow hot water system on the Australian market.
Designed for easy domestic commissioning and installation, the slimline unit withstands tough Australian conditions and saves precious outdoor space.
Customise and complete your B16 system with our comprehensive range of hot water controllers to enhance your experience.
Specifications:
|
Bathrooms (Cool Climate / Warm Climate)* |
1 |
|
Installation |
External |
|
Gas Energy Rating |
6.1 |
|
Heating Capacity L/Min (raised at 25ºC) |
16 |
|
Dimensions (mm) : Height |
531 |
|
Dimensions (mm) : Width |
351 |
|
Dimensions (mm) : Depth |
195 |
|
Weight (kg) |
13 |
|
Gas Input (High) |
124MJ/h |
|
Cold Water Connection (mm) |
15 (1/2″) |
|
Hot Water Connection (mm) |
15 (1/2″) |
|
Gas Connection (mm) |
20 (3/4″) |
|
Minimum Operating Flow (L/Min) |
1.5 |
|
Factory Pre-set Temperature (°C)** |
50/60 |
|
Colour |
Dune |
|
Ignition |
Direct electronic ignition with automatic flame sensing |
|
Gas Type |
Natural Gas or LPG / LP gas |
|
Electrical Supply |
AC 240V 50 Hz (10 amp weatherproof power point) |
|
Water Controllers |
Up to 4 Water Controllers can be installed |
|
Heat Exchanger Warranty |
15 Years # |
|
Parts and Labour Warranty |
3 Years (5 Years if two or more Water Controllers are installed in domestic applications) |
#Adjustable up to 53°C. For 60°C plus installations a tempering valve in accordance with AS3500.4 is required.
*Rinnai B16L50 is made from premium materials and built to last. Rinnai provides a standard 3 year (10 Year Heat Exchanger) parts and labour warranty on all Builders series Continuous Flow hot water systems. An optional 5 years extended Heat Exchanger warranty is available.
See Rinnai website at www.rinnai.com.au for terms and conditions.
